F 416 Ex motor

The lightweight air motor

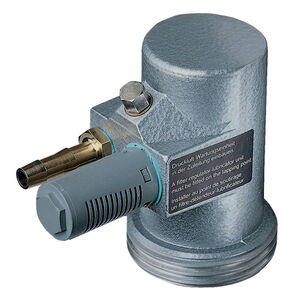

  • Motor F 416 Ex

Product attributes

  • Very light and easy to handle
  • Extremely powerful
  • With adjustable tip valve
  • Three models available:
    • F 416 Ex: with trigger
    • F 416-1 Ex: without trigger and ball valve
    • F 416-2 Ex: without trigger and with ball valve

The F 416 Ex air motor is light weight and simple to use, all while being extremely powerful. These motors are capable of operating at varying speeds by adjustment of the input air operating pressure and volume by use of a ball valve, needle valve or filter/regulator. The motor is available in three versions: F 416 Ex with trigger operation, F 416-1 Ex without ball valve and F 416-2 Ex with ball valve.





Technical data

  • ATEX Ex II G IIC T6
  • Inlet Air Pressure: max 87 PSIG
  • Air Consumption: max 17 cfm
  • Capacity: 470 W
  • Ventilation: External
  • Variable Speed: Optional
  • Weight: 2 - 3 lbs (0.9 - 1.4 kg)
