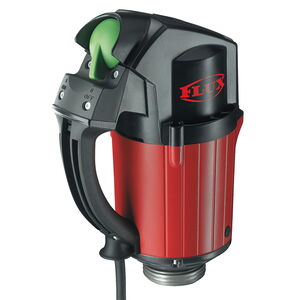

F 458 Motor
Rugged design
Product attributes
- Robust aluminum housing
- Corrosion-resistant painting
- Very low noise level
- Enclosed motor to prevent corrosion from fumes
- Available models:
- F 458-1: 700 W
- F 458 EL: with variable speed adjustment
The F 458 is a compact with an extremely durable, double wall aluminum housing, thus operating very quietly. The motor is completely enclosed with a special corrosion-resistant paint, therefore, more than suitable for use in extreme conditions, even in areas with corrosive vapor.
The F 458 EL has easy to use electronic speed adjustment to regulate the pump flow rate. The F 458-1 is identical to the F 458, but has 700W capacity for greater performance. This motor is used when a higher capacity is required or when slightly viscous liquids with a high density need to be pumped.
Technical data
- Enclosure: IP 55
- Ventilation: external
- Voltage: 12 V, 24 V, 110 - 120 V, 230 V, 240 V
- Frequency: 50 - 60 Hz
- Capacity: 460/700 W
- Variable Speed: Optional
- Weight: 11.2/13.0 lbs (5.1/5.9 kg)
- Integral no-volt release: Optional
