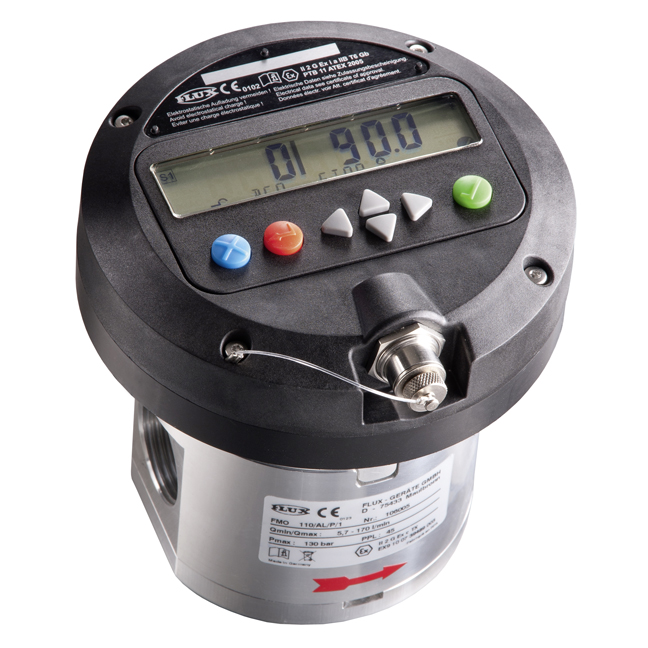

FMO 110

Flow meter for 2 - 39 GPM (9 - 150 l/min)

Branch: IndustryBranch: Surface technologyBranch: CosmeticsBranch: PharmacyBranch: PetrochemistryBranch: AgricultureBranch: Water treatmentBranch: Paints and lacquersBranch: ChemistryBranch: Food
  • .

The FMO oval rotor flow meter is suitable for use with thin to highly viscous, clean liquids. With the FLUXTRONIC®, batching and dosing a wide variety of liquids can be performed with a high degree of accuracy and safety. In automatic mode it is possible to batch and meter.  For example, when paired with the FAE hand nozzle and FSV amplifier, one-touch batching with automatic shutoff is possible.
  • Application areas: Atex
  • Application areas: FDA
  • Application areas: Food

Product attributes

  • Semi-automatic filling with a switching amplifier possible
  • Can be displayed in liter, gallons or kilogram
  • Signal can be forwarded to FLUXTRONIC® or another external control as e.g. PLC
  • High accuracy and repeat accuracy
  • For the use in piping systems
  • Available with  integrated evaluation unit  FLUXTRONIC® or as impulse version
  • For thin to highly viscous pure media
  • Oval rotor design
  • Version in stainless steel can be used for ex-applications in Zone 1
  • Very precise dosing possible
  • High resistancy
  • Wide range of viscosities can be covered
  • Can also be used for pulsating volume flow
  • Low pressure loss
  • FOOD version conform EC 1935/2004 and FDA CFR 21 for contact with food available

Technical Data

  •  Flow rate: 2 - 39 GPM (9 - 150 l/min)
  • Measurement error of flow rate < 5 cPs: 2%
  • Measurement error of flow rate > 5 cPs: 0.5%
  • Operating pressure max: PVDF: 145 PSI AL: 1885 PSI S: 2900 PSI S Clamp: 232 PSI
  • Viscosity max: 500,000 cPs
  • Housing Materials: Polyvinylidene fluoride, Stainless steel, Aluminium
  • Fluids: Acids, Alkalis, Petroleum products, Highly flammable media, Solvents, Fuels
