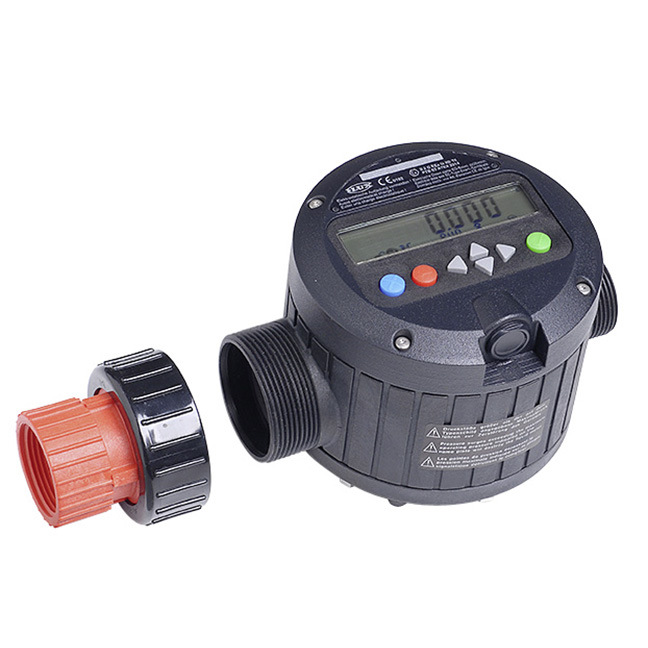

FMJ 100
For manual filling of various fluids
The FLUX flow meter FMJ 100 is a low-cost alternative to the FMC 100, if only manual use is desired. The FMJ 100, built to nutating disc principle, is designed for the use with FLUX drum pumps or for the stationary application e.g. in piping systems. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and the highest degree of safety.
Product attributes
- Low-cost alternative to our FMC 100 if only manual use is desired
- Nutating disc principle
- For low viscosity media
- High measuring accuracy
- Easy calibration
- Reliable operation
- No mains connections required
- Signal transmission to evaluation unit FLUXTRONIC® or external control unit such as PLC possible
- Insensitive to small solids
- Easy Handling
- Easy assembly
Technical Data
- Flow rate: 2-26 GPM (10-100 l/min)
- Measurement error of flow rate: +/- 1.5%
- Operating pressure max: 58 PSI
- Size of solids max: 1.5mm
- Viscosity max: 2500 cPs
- Material housing: Polypropylene
- Fluids: Acids, Alkalis
- Related videos
- Related literature
- Sample fluids
Battery acid, formic acid, ammonia, formic acid, boric acid, brake fluid, calcium chloride, ferric-III-chloride, photo developers, glycole, mineral oil, sodium hydroxide, phosphoric acid, hydrochloric acid, sulfuric acid to 60 %, tartaric acid, zinc chloride, citric acid
