Drum and container pumps

For lower viscosities and a wide array of containers

Drum- and container pumps

FLUX drum and container pumps are well suited for transferring a wide variety of low-viscosity fluids including highly corrosive and flammable media. These axial-impeller pumps are designed to provide years of pulsation-free pumping action. Pump tubes are interchangeable with wide array of FLUX motors, offered in both electric and compressed air options.

The light weight design make the pumps ultra portable while ease-of-use of both pump and motor make installation a breeze. Sealed, top pull-out designs for easy cleaning as well as sealless designs with run-dry capability are both available in high head and ATEX options. 3A Certified and FDA compliant versions available.

300 Series

  • Lengths to 47 in
  • Flows to 15 GPM*
  • Heads to 28 ft
  • Viscosities to 250 cPs
  • Temperatures to 176°F (60°C)
  • IP24 Splash-proof
  • Cordless, 110V, 230V, 240V, 50-60Hz Motors

400 Series

  • Lengths to 10 ft
  • Flows to 63 GPM*
  • Heads to 98 ft
  • Viscosities to 1,200 cPs
  • Temperatures to 248°F (120°C)
  • Compressed air, 110V, 230V, 240V, 50-60Hz Motors
  • ATEX, 3A, FDA, FOOD versions

*The maximum flow rate is a test bench value, measured with water at 20 °C at the pressure port of the pump, without accessories (hose, nozzle, flow meter). The practically achievable delivery rate is lower. It depends on the individual application, the fluid properties and the pump configuration. Please refer to technical data sheets / performance diagrams.

Drum and container pumps:

Areas of application of the FLUX drum pumps

FLUX drum pumps are available in various types for almost all liquids:

  • sealless drum pump for pumping only one medium (F/FP 424),
  • drum pump with mechanical seal for frequent medium changes (F/FP 430),
  • drum pump for 99,98% drum emptying (F/FP 425),
  • drum pums for mixing and/or pumping (F 426),
  • drum pump for hygienic applications (F/FP 427),
  • drum pump for horizontal use (F430 TR),
  • ibc pump MINIFLUX for horizontal use at the ibc,
  • container pump for higher delivery heads (F430 PP)

FLUX drum pumps are available in the following materials:

  • stainless steel for corrosive and neutral liquids and for the pharmaceutical-, cosmetic- and food industy,
  • polypropylene and polyvinylidene fluoride for acids and alkalis,
  • aluminium for fuels like diesel and oils and
  • hastelloy-c for aggressive acids and alkalis

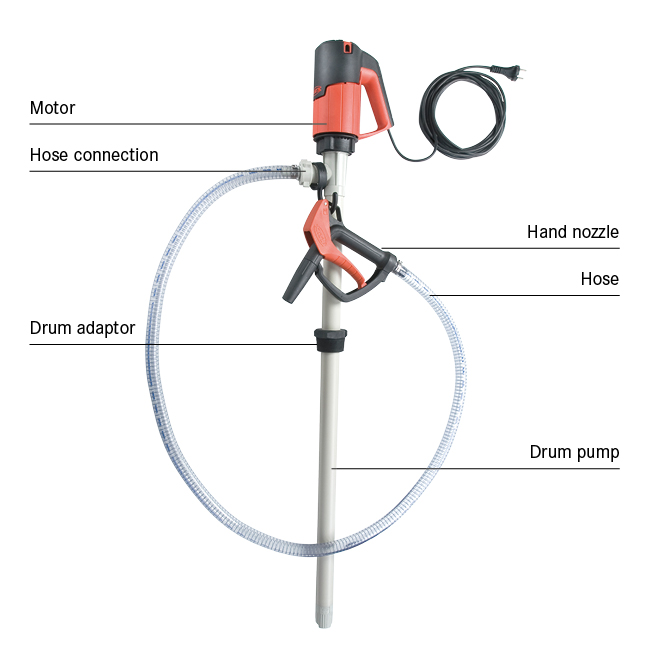

Moreover especially pre-configured pump sets/kits for typical applications are available.
In combination with a flow meter, a semi-automatic filling systems can also be configured - for precise dosing, quite simply with push of a button.

How is a drum pump and barrel pump constructed?

The perfect duo!

FLUX drum pumps and barrel pumps operate on the principle of the axial-impeller pumps and provide a pulsation-free pumping action. The motor drives the drive shaft via a coupling. At the end of the drive shaft there is a propeller-like impeller. The impeller must be completely covered with the medium so the pump can work. With the rotation, the medium is axially transferred to the outlet, i.e. parallel to the pump shaft. All pump types can be temporarily operated against closed valve (hand nozzle, ball valve) up to the indicated max. operating temperature.

The right drum pump, barrel pump and container pump for every container

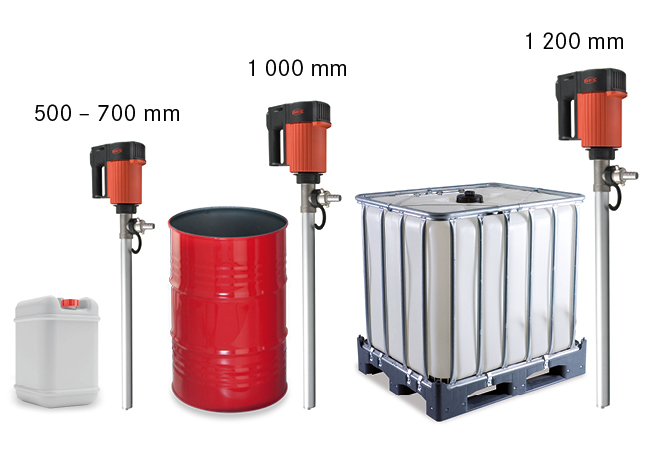

Users of our drum pumps, barrel pumps and container pumps often ask themselves “what immersion length do we actually need for our containers?” We offer all FLUX drum, barrel and container pumps in the standard immersion lengths 700 mm, 1,000 mm and 1,200 mm. Of course, we can also offer special lengths from approx. 300 mm up to 3,000 mm for your specific needs.

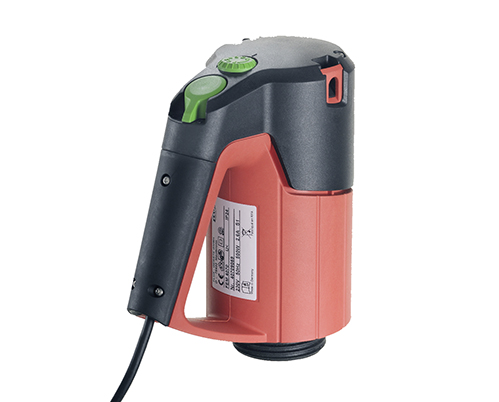

Suitable motors for every requirement

For driving FLUX drum pumps, a wide range of electrical to pneumatic motors is available. Even if you work in hazardous areas or with flammable liquids. Depending on the application, FLUX drum and container pumps can be combined with different motors - commutator motors, brushless motors, three-phase motors and pneumatic motors.

You have the choice

Are you looking for a suitable combination of electric or pneumatic drive motors and a barrel pump or drum pump? The extensive FLUX product range offers you a unique selection of drum pumps in materials such as stainless steel, polypropylene, aluminum and hastelloy-c as well as motors. In addition, there is a large number of O-ring materials and different rotors for the desired delivery rate.

Our qualified FLUX consultants will be happy to help you choose the right pump. Simply contact us with your requirements and we will of course offer you free advice and the creation of a suitable offer for your application. Our competent specialist advisors will be happy to help you choose the right drum pump.

Request a quote now

Good to know when selecting the pump type

Mechanical seal or without seal

For standard applications, FLUX provides two high-quality pump types: pumps with mechanical seal or pumps without seal in the liquid area. Both pump types have an ingenious design.

Drum pump with mechanical seal

  • Ideal for frequent medium changes, hardening media, fast drying media, crystallizing media
  • Can be taken apart into main components easily and quickly for cleaning
  • Higher service life on abrasive media compared to sealless pumps
  • High stability plastic pumps enable immersion lengths of up to 3.000 mm
  • Versions in stainless steel and Hastelloy C can be used in hazardous areas*
  • FOOD version conforms EC 1935/2004 and FDA CFR 21 for contact with food
Diagram of a FLUX pump with mechanical seal

* according to EC Directive 2014/34/EU

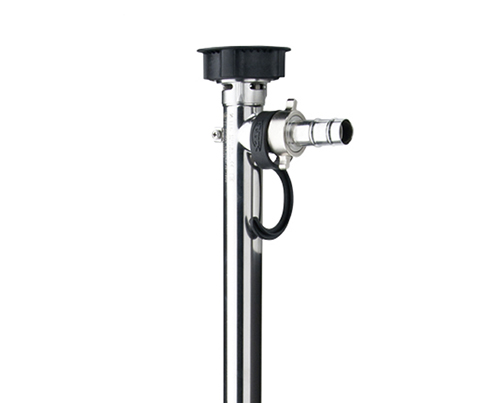

Drum pump sealless

  • No seal wear
  • Optimal emptying of the inner tube
  • High service life
  • Low wear of guide bearing and shaft
  • Long bearing life
  • Particularly suited for hydrochloric acid and chromic acid
  • Stainless steel version for use in hazardous areas*
  • Versions for use with AdBlue® also available
Diagram of a sealless drum pump



Impellers for the requested delivery rate

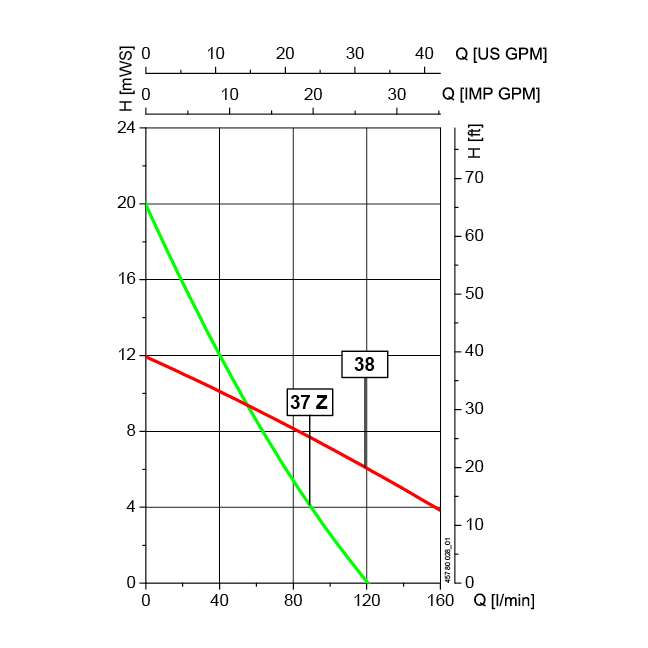

Comparison of the characteristic curve of a drum pump F/FP 430 with motor F 457 with axial impeller 38 mm and semi-axial impeller (Z-version) 37 mm
  • FLUX offers two different types of impellers.
  • The geometry of the axial impeller provides for small flow losses in circumferential direction, flow is almost completely axial. Used when high flow rates are required at low pressure requirements.
  • The geometry of the semi-axial impellers (Z-version) provides mainly for a flow in circumferential direction. Combined with the pressure ring, the flow is redirected in axial direction. This provides a higher delivery pressure at a lower delivery rate. Semi-axial impellers are used in case of an increased pressure requirement.
  • All impellers are in ethylene-tetrafluoroethylene (ETFE).
  • Axial impeller with diameter 38 mm is also available in stainless steel.

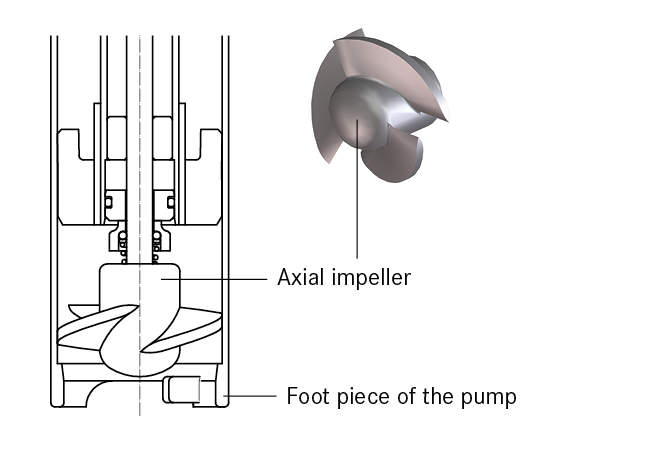

F/FP 430 with mechanical seal and axial impeller
F/FP 430 with mechanical seal and axial impeller

Use of axial impellers

  • For high delivery rates
  • For light media (density up to1.3 kg/dm³)
  • For short discharge lines
  • For small differences in height
  • For low pressure losses

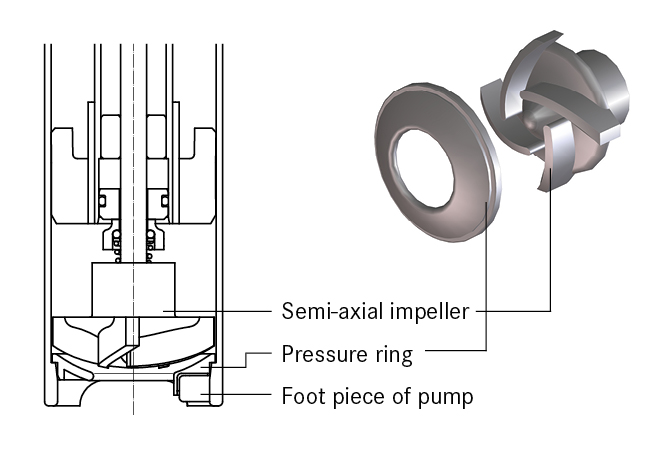

F/FP 430 with mechanical seal and semi-axial impeller (Z-version)
F/FP 430 with mechanical seal and semi-axial impeller (Z-version)

Use of semi-axial impellers (Z-version)

  • For high delivery heads
  • For heavy media (density from 1.3 kg/dm³)
  • For long discharge lines
  • For big differences in height
  • For pressure losses due to valves and fittings
