FLUX Pumps for the Pharmaceutical sector

Task:
A wide variety of salves and creams must be pumped from 55 gal drums into the supply containers of a tube-filling machine

Solution:

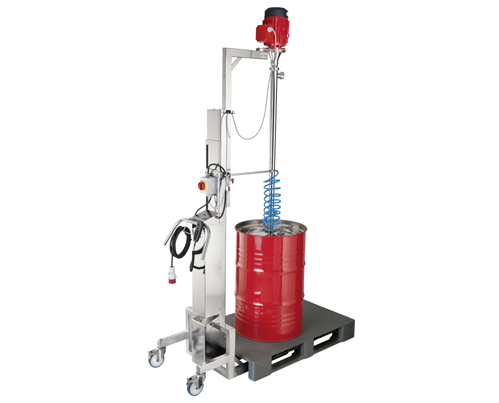

Drum emptying system VISCOFLUX mobile S
Eccentric worm-drive pump F 560 TR
Spur gear drive motor
For the application designed accessories on request

Application description:
The VISCOFLUX mobile S drum emptying system is ideally suited for filling high-viscosity, pasty media such as salves or creams that are not capable of flowing on their own. The system comprising a follower plate and the F 560 S eccentric worm-drive pump fills the often quite viscous mass into the supply container of the tube-filling machine; the residual amount in the drum is less than 1%.

Quantity presetting for very flexible operation is possible. The filling speed can also be determined by rotational speed control. If a drum is not completely emptied, no fluid can escape because the rest remains securely closed by the follower plate. In the meantime, the process device can be removed. With the integrated maintenance-free battery, the system can also be moved up and down without a power outlet – an advantage if there is no power outlet within reach, as is common in cleaning sites.

Task:
Various greases of classes 1 to 3 with a temperature of up to 140°F require pumping from so-called softbacks and supply containers into a filling system.

Customer's requirements:
- Filling accuracy +/- 3.5 grams
- Pump capacity: min. 4 gpm.

Solution:
Eccentric worm-drive pump F 560 TR (dry well installation)
Three-phase motor
Flow meter FMO
Evaluation electronic FLUXTRONIC^®
Switched-mode amplifier
For use with custom accessories upon request

Application description:
Our eccentric worm-drive pump F 560 TR FOOD, in the dry well installation, is particularly suitable for pumping low to medium viscosity media from containers that are not accessible from the top, e.g. from softbacks. This means that the eccentric worm-drive pump does not need to be immersed in the medium.

The F 560 TR FOOD is mounted on a mobile pump trolley or console and is connected to the bottom outflow on the softback. When started up, the eccentric worm-drive pump sucks in the medium and pumps it directly into the filling system via a hose.

Once the desired volume is reached, the end of the hose is sealed, e.g. with a ball valve. The rising pressure is monitored with a pressure switch and the eccentric worm-drive pump is switched off if necessary. It is also possible to preset the desired volume using our FMO flow meter and automate the filling process with the push of a button.

Task:
Gelatine with a viscosity of approx. 1400 cPs requires decanting from various stainless steel containers into storage tanks.

Customer's requirements:
- Variable delivery quantity from 1 – 8 gpm.
- No air bubble formation
- Low shear forces
- Easy to clean
- FDA-compliant solution

Solution:
Eccentric worm-drive pump F 560 S FOOD
SEW spur gear motor
Hose for hygiene requirements
For use with custom accessories upon request

Application description:
Our F 560 S eccentric worm-drive pump is the perfect solution for more viscose fluids such as gelatin. In this case, it also has the appropriate certificate for hygiene applications.

The F 560 S eccentric worm-drive pump is portable and can be placed in the relevant container quickly and easily. The practical design makes for reliable pumping without air bubbles. Thanks to extremely low shear forces, the gelatin's texture is also preserved simultaneously.

The spur gear motor used here has variable speed thanks to the PLC control meaning filling can be done at just the right speed.

In hygiene sectors, the F 560 eccentric worm-drive pump must be cleaned frequently. For this reason, FLUX handle screws are used which make it easy to remove the motor quickly without tools and so thorough cleaning can be done with minimal effort.
